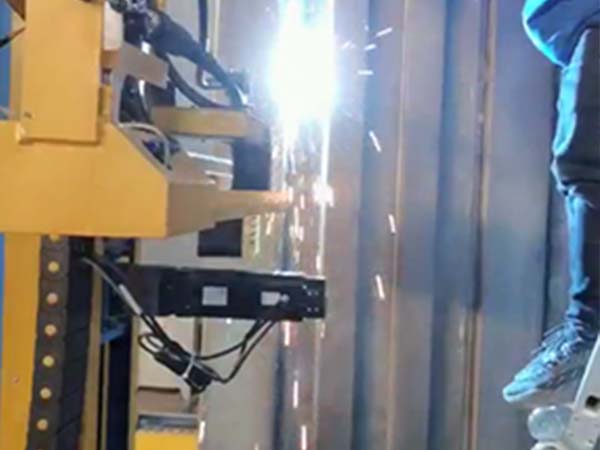

Case name: Box rail welding equipment

Configuration: linear guide rail, automatic welding equipment, support frame, retractable welding gun

Welding process: vertical welding of container side panels

Working principle: The welding material of the container side panels is carbon steel electrolytic plate, which has good corrosion resistance. When choosing the welding process, it is necessary to stabilize the weld quality and reduce the amount of spatter. The box welding equipment realizes vertical welding of the box side panels by adding guide rails to the support frame. When the entire long straight weld is made, the robot body can be stabilized without moving. The welded weld is beautiful and firm.

Welding parameters: Welding parameters: welding current 145~150A, voltage 17.5~18V, welding wire diameter 1.2 solid wire, gas is a mixture of argon arc and carbon dioxide to increase the stability of the welding process, gas flow 8~10L/min, welding speed 920mm/min.

Application areas: can be applied to transportation, heat exchangers, tank transportation, oil and gas pipelines,

Types of weldable boxes: clothes hanging containers, container high cabinets, freezers, refrigerated cabinets, tank boxes, open top boxes, etc., weldable materials include aluminum boxes, stainless steel, steel boxes, etc.

Qingdao Lu Teng can formulate welding plans according to different box structures, while ensuring welding quality and controlling user cost expenditures. It has a complete service system, formulates plans according to customer needs before sales, special personnel docking during sales, provides installation, commissioning, and training services on site, and enjoys free technical support after sales, and has established offices in major cities.
